被動式防震台
1. 美國大廠,被動防震領導品牌
2. 操作直覺,迅速上手
3. 六個自由度的震動隔離
4. 無需空壓機及電源
5. 極佳的低頻隔離效果

目的:
隔絕外來震動,讓設備的效能發揮最大

品牌: 美國 MinusK
概觀

實驗室充斥著低頻震動卻不知道如何隔離?

擁有百萬級量測設備,卻沒有一個好的防震系統讓它達到應有的極致效能?

"MinusK 被動式防震台"

Minus K Technology - Company Presentation

來自美國,近30年的隔震技術,超過300間國際頂尖研究機構認可使用,

用較經濟實惠、更輕鬆的方式(無需電力、無需打氣)協助您打擊低頻震動,

讓您的設備回歸應有的完美效能。

國際代表客戶連結參考


運作原理:

MinusK®隔振器在低頻隔振方面採用了革命性的理念。垂直運動隔離由支撐負重的剛性彈簧與負剛度機構(NSM)結合提供。在不影響彈簧的靜態負載支撐能力的情況下,使其淨垂直剛度非常低。與垂直運動隔離器串聯的樑柱可提供水平運動隔離。樑柱的水平剛度通過“樑柱”效應而降低。

MinusK®隔離器通常使用三個串聯的隔離器:傾斜運動隔離器在水平運動隔離器的頂部,垂直運動隔離器的頂部。垂直運動隔離器如圖1所示。它使用傳統的彈簧連接到NSM,該彈簧由兩個在其內端連接到彈簧並在其外端支撐的撓曲組成,並在力P的作用下承受壓縮力。彈簧的重量W壓縮到隔離器的工作位置,如圖1所示。隔離器的剛度為K = K S -K N其中K S是彈簧剛度,而K N是負剛度的大小,它是撓曲和載荷P的函數。在彈簧支撐重物W的情況下,可以使隔離器剛度接近零。

負剛度隔振功能(動畫的工作原理)MinusK®隔振器在低頻隔振方面採用了革命性的理念。垂直運動隔離由支撐負重的剛性彈簧與負剛度機構(NSM)結合提供。在不影響彈簧的靜態負載支撐能力的情況下,使其淨垂直剛度非常低。與垂直運動隔離器串聯的樑柱可提供水平運動隔離。樑柱的水平剛度通過“樑柱”效應而降低。
MinusK®隔離器通常使用三個串聯的隔離器:傾斜運動隔離器在水平運動隔離器的頂部,垂直運動隔離器的頂部。垂直運動隔離器如圖1所示。它使用傳統的彈簧連接到NSM,該彈簧由兩個在其內端連接到彈簧並在其外端支撐的撓曲組成,並在力P的作用下承受壓縮力。彈簧的重量W壓縮到隔離器的工作位置,如圖1所示。隔離器的剛度為K = K S -K N其中K S是彈簧剛度,而K N是負剛度的大小,它是撓曲和載荷P的函數。在彈簧支撐重物W的情況下,可以使隔離器剛度接近零。

負剛度K水平公式帶有載荷的負剛度樑柱(動畫的工作方式)

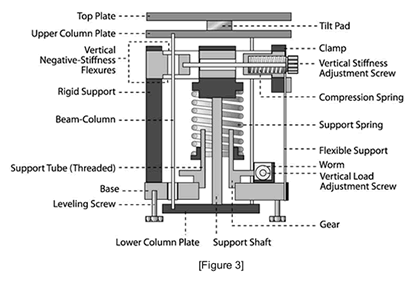

圖3圖1示出了結合有圖1和圖2的隔離器的負剛度振動隔離器的示意圖。傾斜墊用作傾斜運動隔離器。垂直剛度調節螺釘用於調節負剛度撓曲上的壓力,從而改變垂直剛度。垂直負載調節螺釘用於通過升高或降低支撐彈簧的底座來調節重量變化,以將撓性件保持在其筆直的,未彎曲的操作位置。該功能可以在單隔離器系統中實現自動化,並在多隔離器系統中實現自動調平。

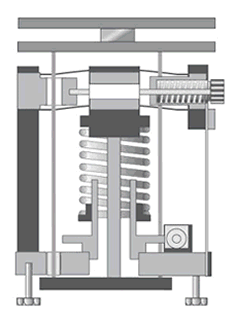

負剛度隔離器圖負剛度隔離器水平和垂直圖(它們如何工作動畫)

圖4是典型的懸臂水平運動撓性件的示意圖,該撓性件允許較低的隔離器高度和較低的水平固有頻率。彎曲件在其端部承受重量載荷  W ,具有  x  和  y  位移能力。

負K彎曲撓性振動隔離負剛度(動畫的工作原理)

低頻隔震參考影片連結: https://www.youtube.com/watch?v=P5idWwhc948&feature=emb_log

技術規格

Minus K Negative Stiffness Isolator Transparent Vibration Isolation Vibration Control

- Vertical vibrations are isolated by the spring's interaction with four pairs of flexures. The weight of the instrument compresses the pre-loaded spring, floating the isolator and aligning the flexures.

2 - A squeeze force from another spring, controlled by the knob O. is applied to the outside of the flexures via a screw. The "squeezed" flexures constitute a "negative stiffness mechanism" (NSM) that acts like the negative of a spring, reducing the stiffness of the system.

3 - Four beam-columns connecting an upper and lower column plate act as a horizontal spring to isolate the horizontal motion. The beam-columns are vertically very stiff, but bend slightly in response to horizontal vibration. The weight on the deflected beam-columns reduces the stiffness of the spring, making the system behave like a spring with an NSM.

4 - The crank moves the base of the spring up and down to compensate for changes in the weight of the payload and to keep the flexures in their straight aligned position. If you increase the weight on the spring (by swapping a lighter microscope for a heavier one, for example), its base must be raised by turning the crank clockwise.

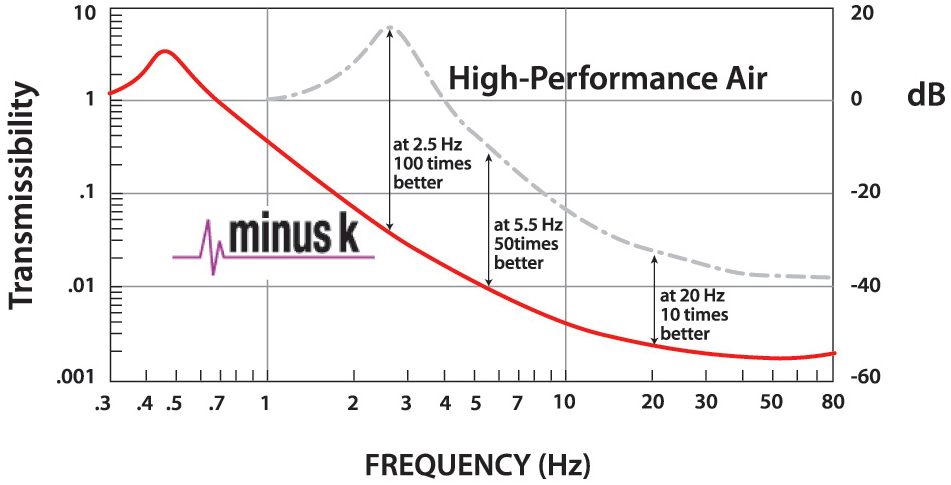

Transmissibility Curve

Minusk 桌上型被動式防震台


BM-10 Platform Isolator

BM-10 Bench Top Vibration Isolation Platform

The new BM-10 benchtop platform proves that great things come in little packages. This is simply the highest performance isolator ever offered in such a small package. 4.6" x 12" x 12"

Weight: Approximately 35 lb (16 kg)

Dimensions:
12.2” W x 12.2” D x 4.6” H
(310mm W x 310mm D x 117mm H)

Approximate payload weight range:
Model Payload Range*
10BM-10
0 - 10 lb
(0 - 4.5 kg)
25BM-10
10 - 30 lb
(4.5 - 14 kg)
50BM-10
30 - 55 lb
(14 - 25 kg)
75BM-10
50 - 80 lb
(22.5 - 36 kg)

100BM-10

75 - 110 lb
(34 - 50 kg)


BM-8 Platform Isolator

BM-8 Bench Top Vibration Isolation Platform

The new BM-8 benchtop platform offers 10-100 times better performance than air tables in a package only 4.6 inches tall, and without air!

Weight: Approximately 40 lb. (16 kg)

Dimensions:
18” W x 20” D x 4.6” H
(457mm W x 508mm D x 117mm H)

Approximate payload weight range:
Model Payload Range*
25BM-8
10 - 30 lb
(4.5 - 14 kg)
50BM-8
25 - 55 lb
(11 - 25 kg)
75BM-8
40 - 79 lb
(18 - 35 kg)
100BM-8
50 - 105 lb
(23 - 48 kg)
125BM-8
90 - 130 lb
(40 - 59 kg)

150BM-8

125 - 155 lb
(57 - 70 kg)
175BM-8*
150 - 180 lb
(68 - 81.5 kg)
200BM-8*
175 - 205 lb
(79.5 - 93 kg)
225BM-8*
200 - 230 lb
(90.5 - 104 kg)

250BM-8*

225 - 255 lb
(102 - 115.5 kg)


BM-6 Platform Isolator

BM-6 Bench Top Vibration Isolation Platform

The new BM-6 benchtop platform offers better performance than a full size air table in a package only 4.6 inches tall, and without air!

Weight: Approximately 40 lb. (16 kg)

Dimensions:
18” W x 20” D x 4.6” H
(457mm W x 508mm D x 117mm H)

Approximate payload weight range:
Model Payload Range*
25BM-6
10 - 30 lb
(4.5 - 14 kg)
50BM-6
25 - 55 lb
(11 - 25 kg)
100BM-6
50 - 105 lb
(18 - 35 kg)

各款式規格型錄下載:

BM-1 Specification Sheet

BM-4 Specification Sheet

BM-6 Specification Sheet

BM-8 Specification Sheet
